SINGLE ACTING CYLINDERS
CUSTOMISED PRODUCTS

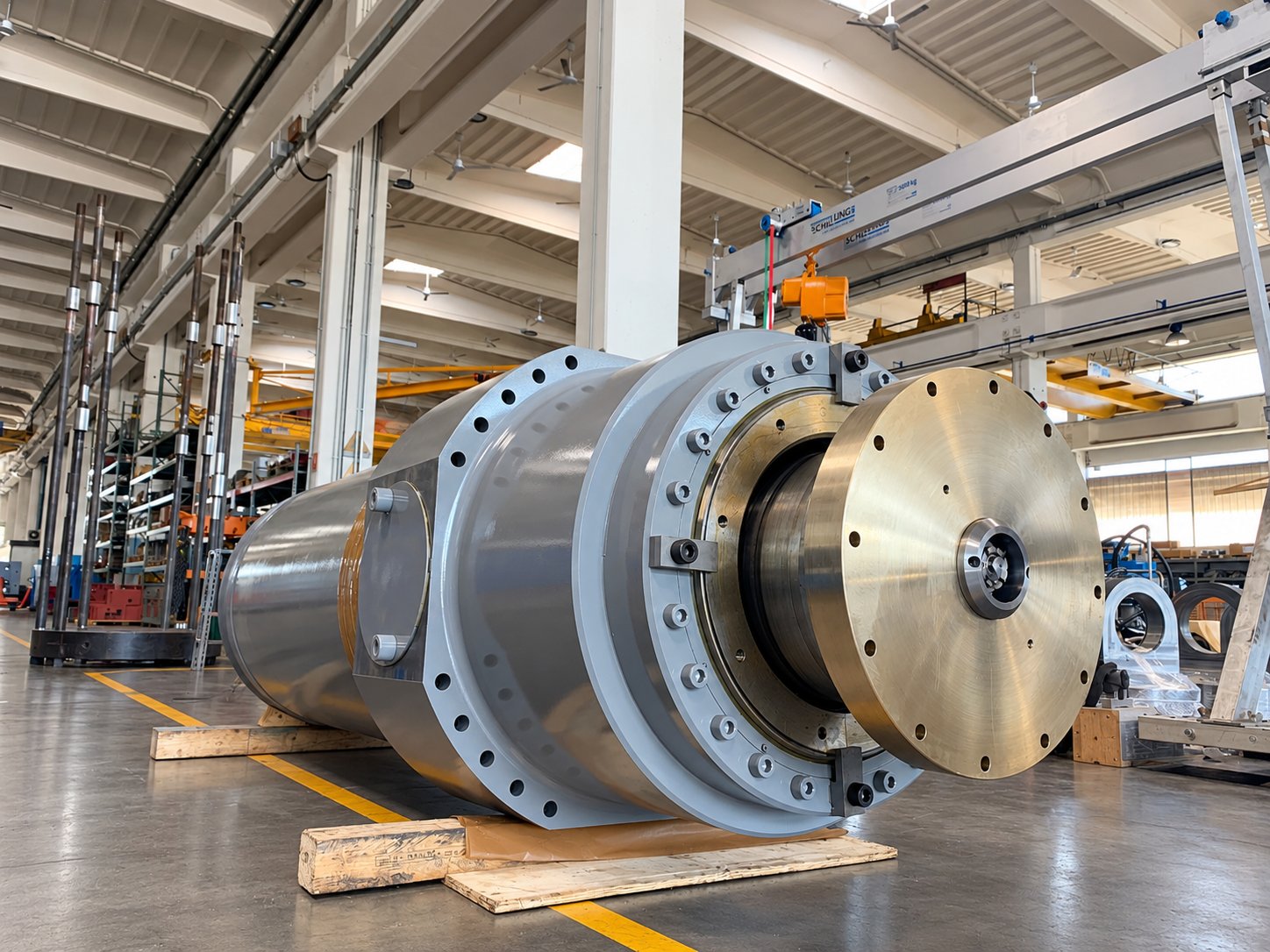

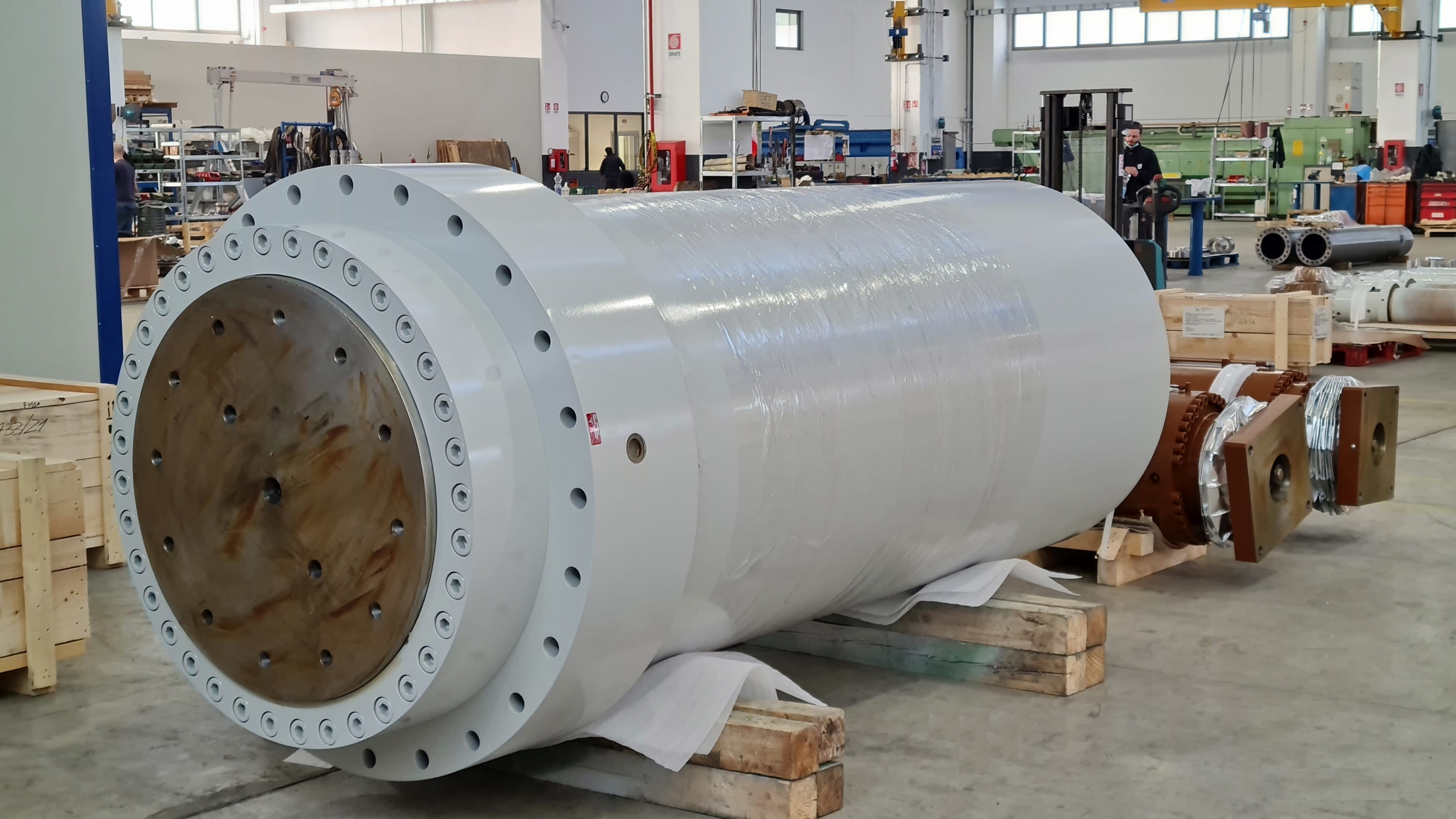

Single-acting cylinders have only one pressure chamber and the force is developed in one direction only. The rod is returned by an external force.
Bore diameters up to 2500 mm and any length. Single-acting cylinders are tested in purpose-built test rigs.
Single-acting and plunger
Up to 2,500 mm bore, any length, tested in bespoke test cages
HOW IT WORKS
- Thrust: pressurised oil enters the single chamber and pushes the rod, or plunger, in one direction only.
- Return: is driven by an external force: the weight of the load or of the slide, springs or pull-back cylinders.

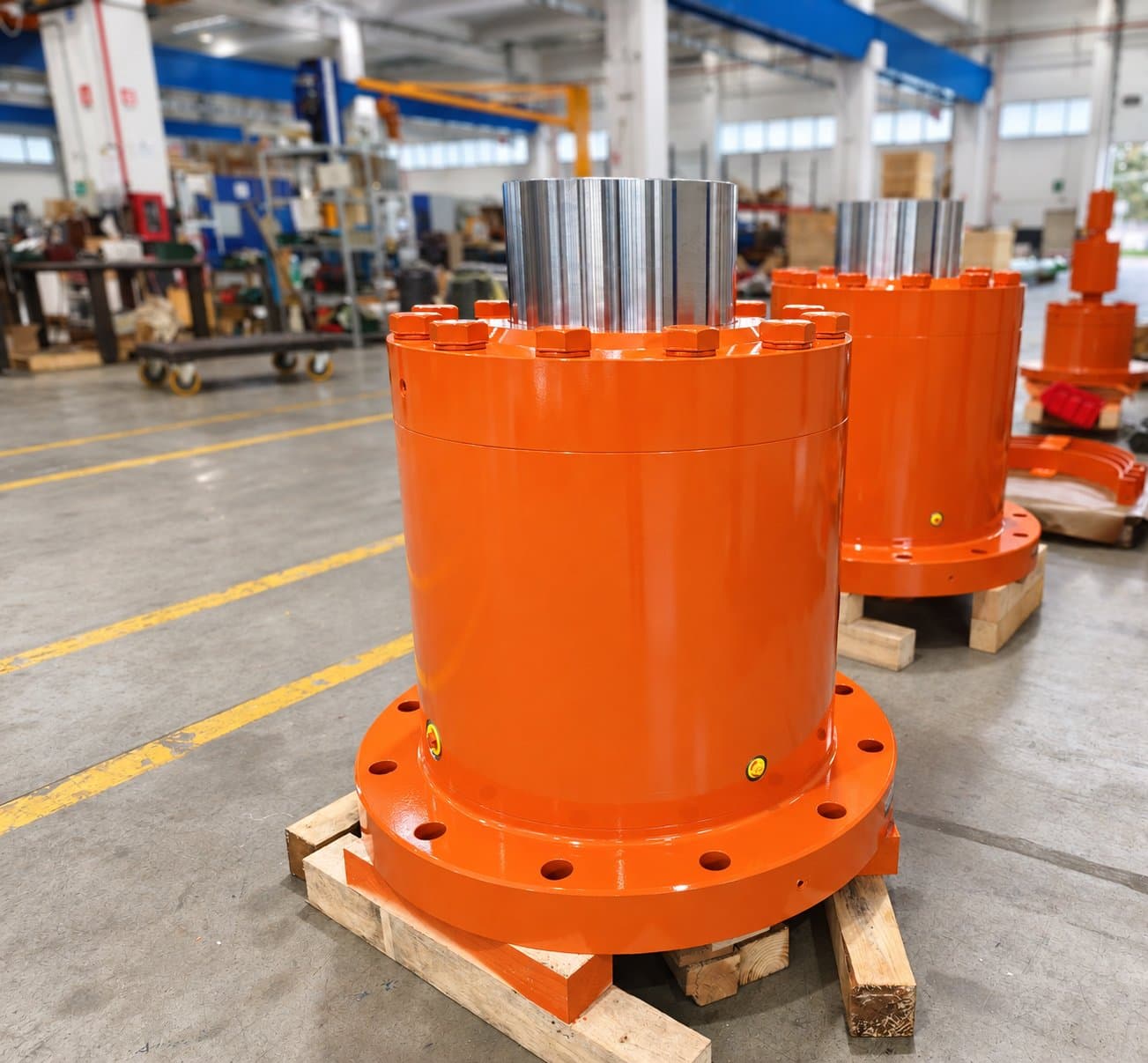

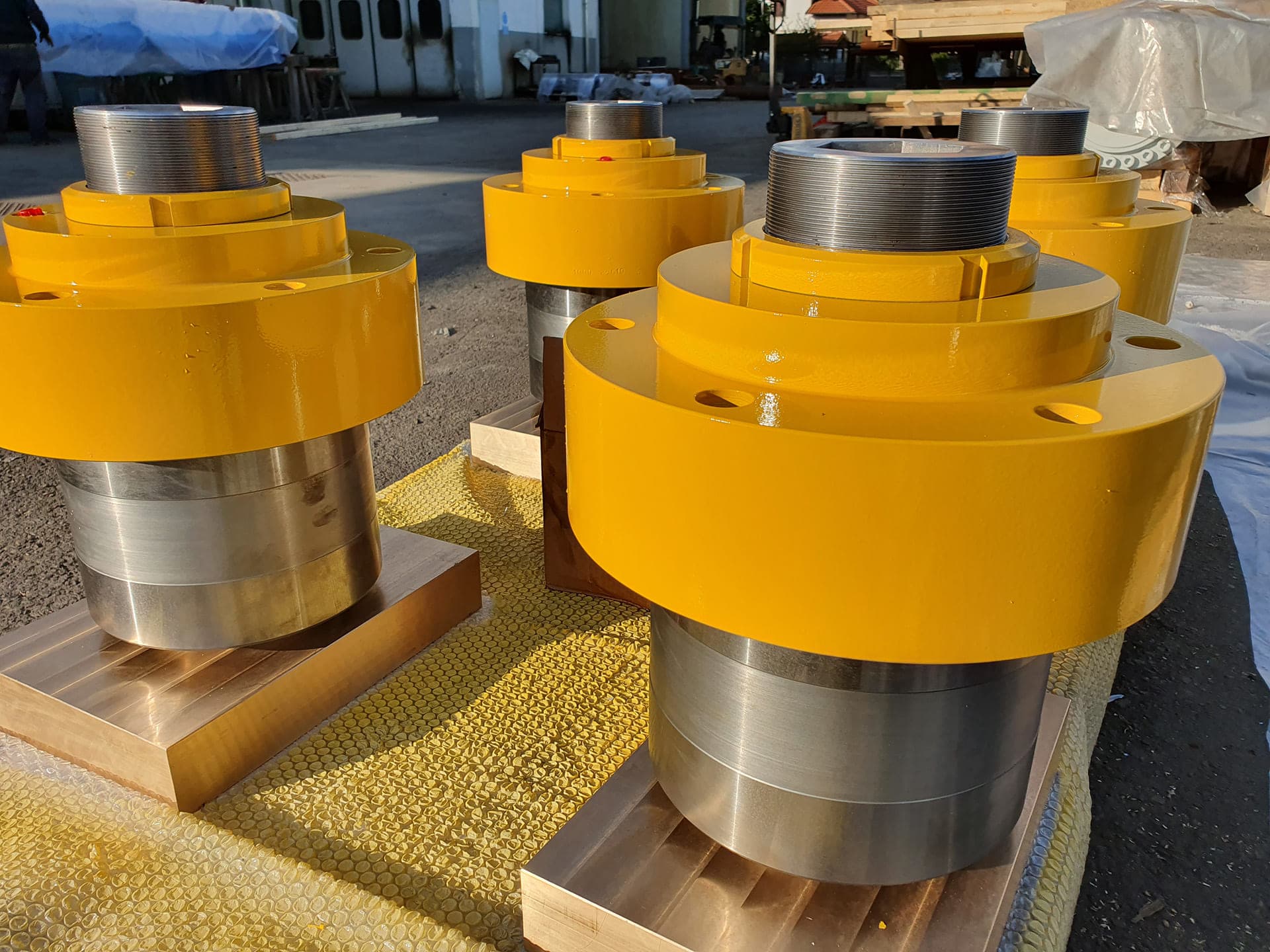

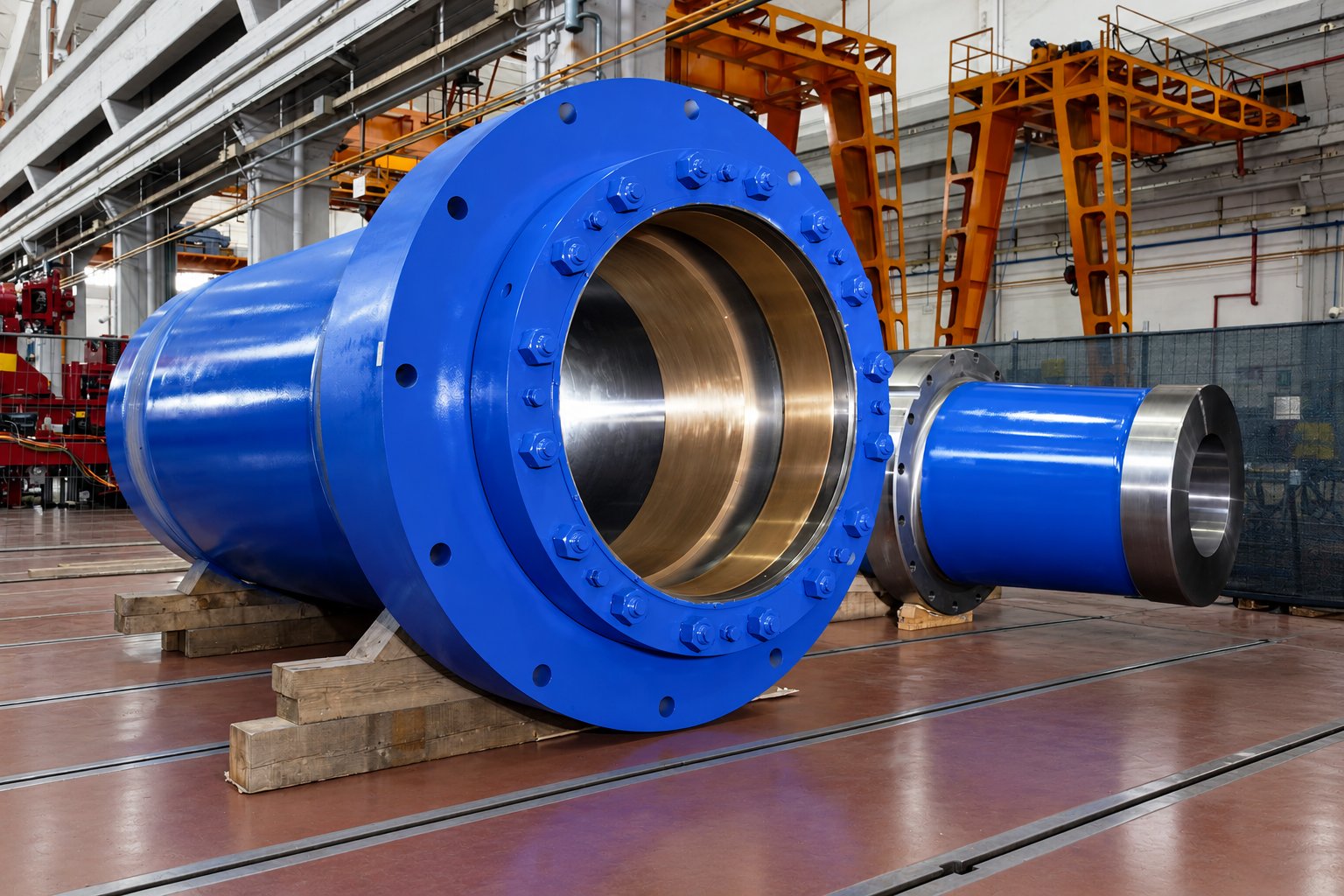

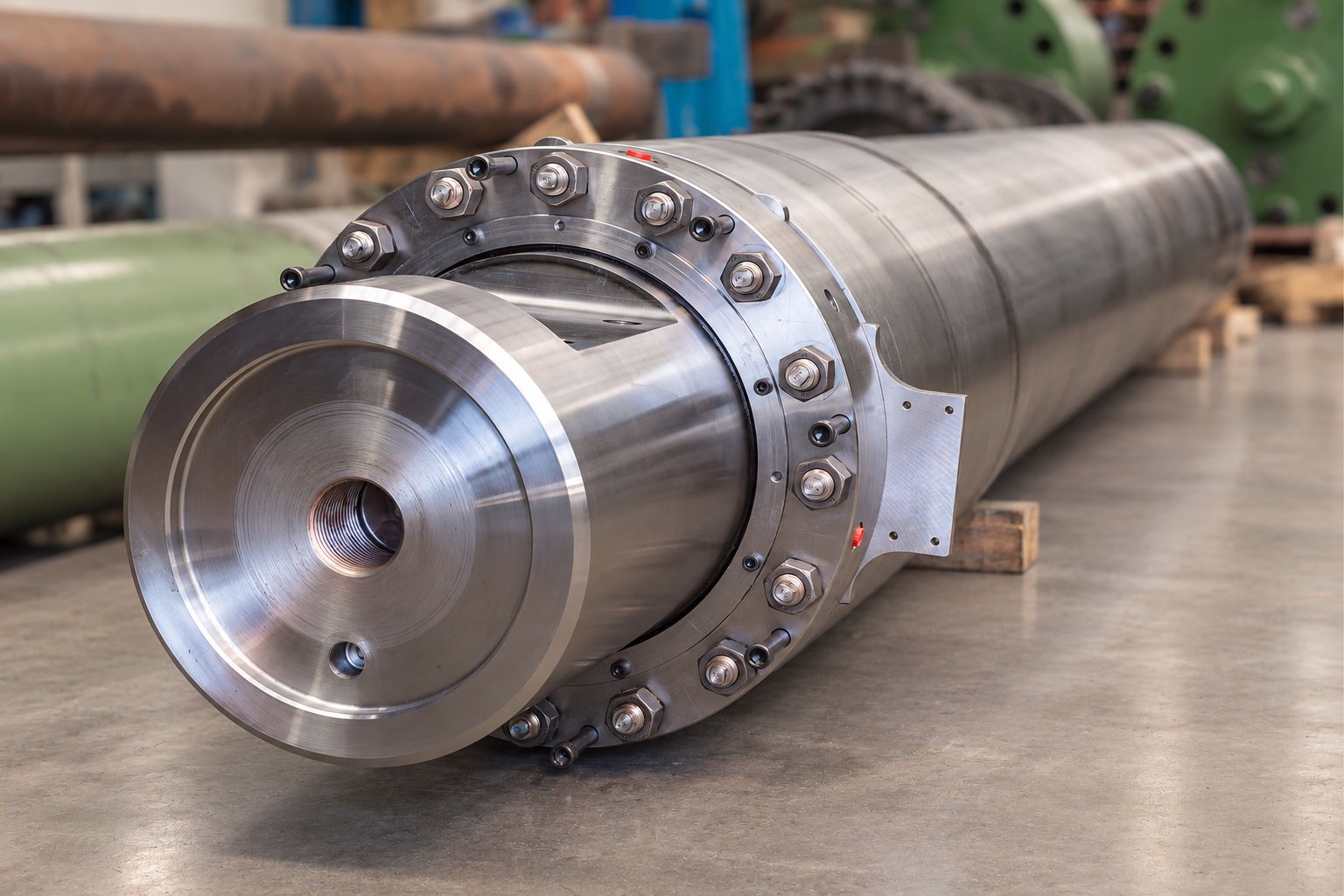

In a plunger cylinder the rod itself acts as the piston: the thrust area is the cross-section of the plunger and no piston seal is needed.

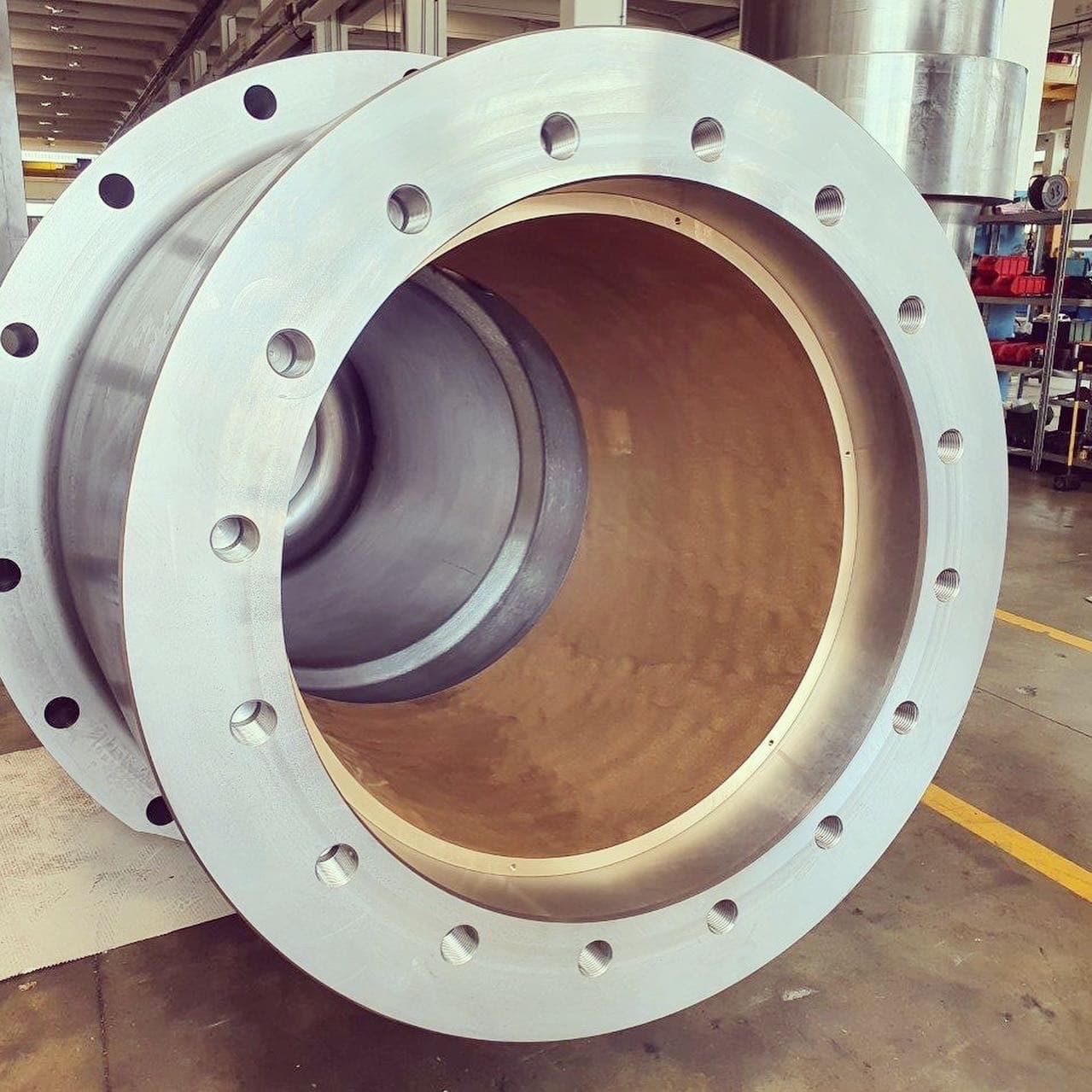

CONSTRUCTION FEATURES

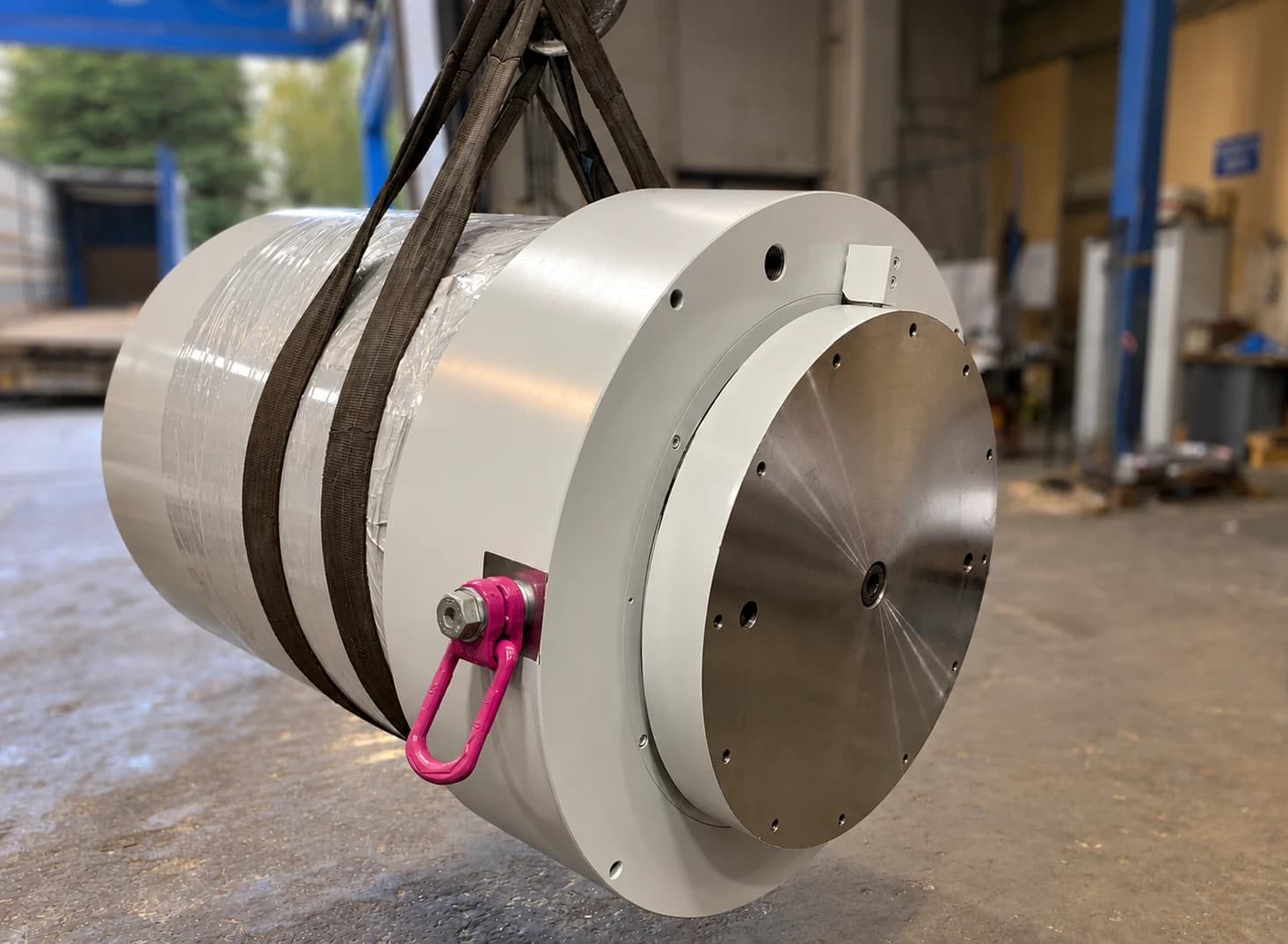

Simple, sturdy construction with fewer seals and components than a double-acting cylinder.

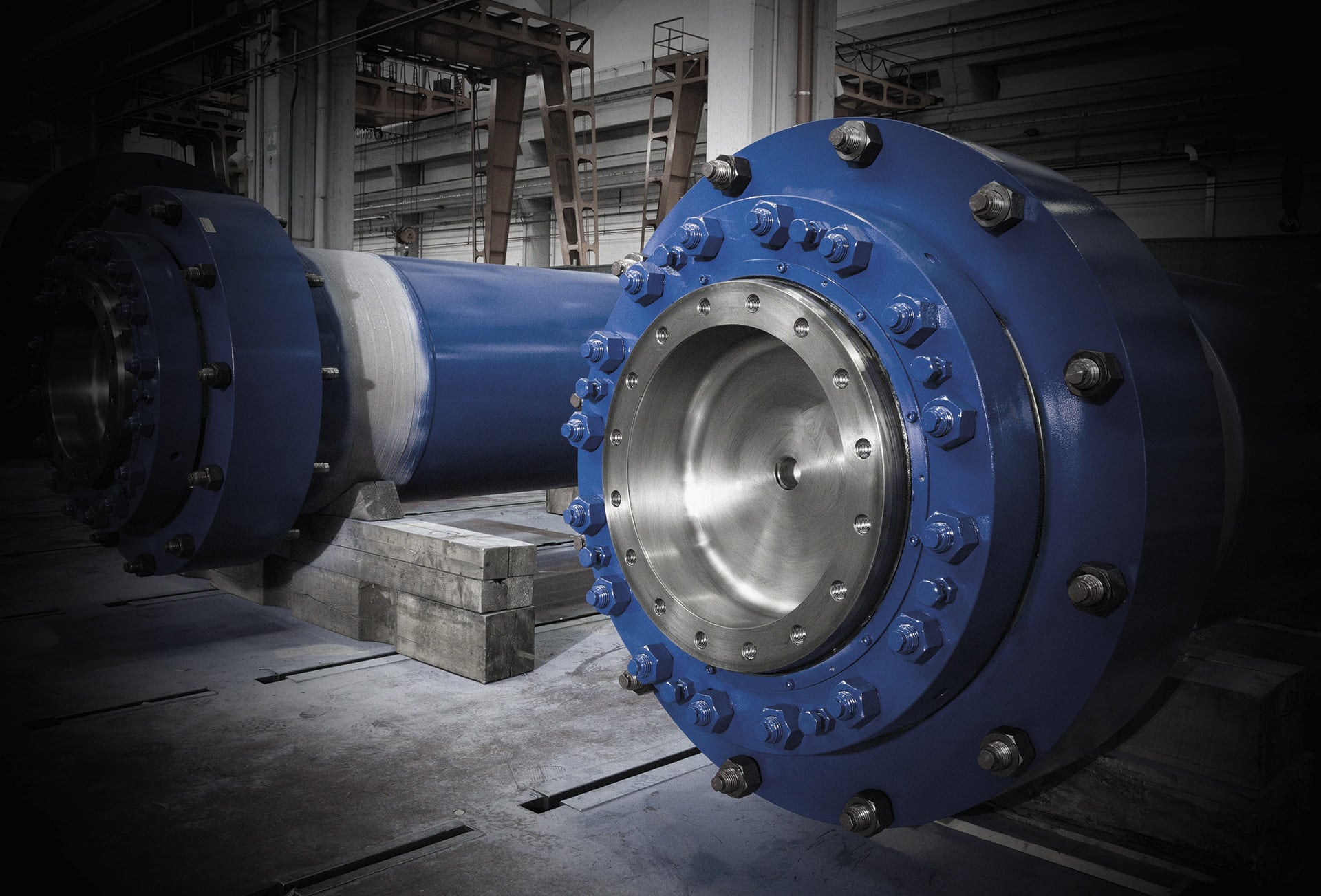

Each cylinder is custom designed, up to 2,500 mm bore and any length, with mountings and ports defined around the machine. Design is carried out in-house with FEM and fatigue analysis; testing takes place in dedicated test rigs, with static and dynamic tests up to 1,500 bar.
ADVANTAGES
- Very high forces thanks to large diameters
- Fewer seals, so simpler maintenance
- Ideal when the return stroke is provided by the weight of the load
- Custom design for new machines and for revamping existing plants
APPLICATIONS

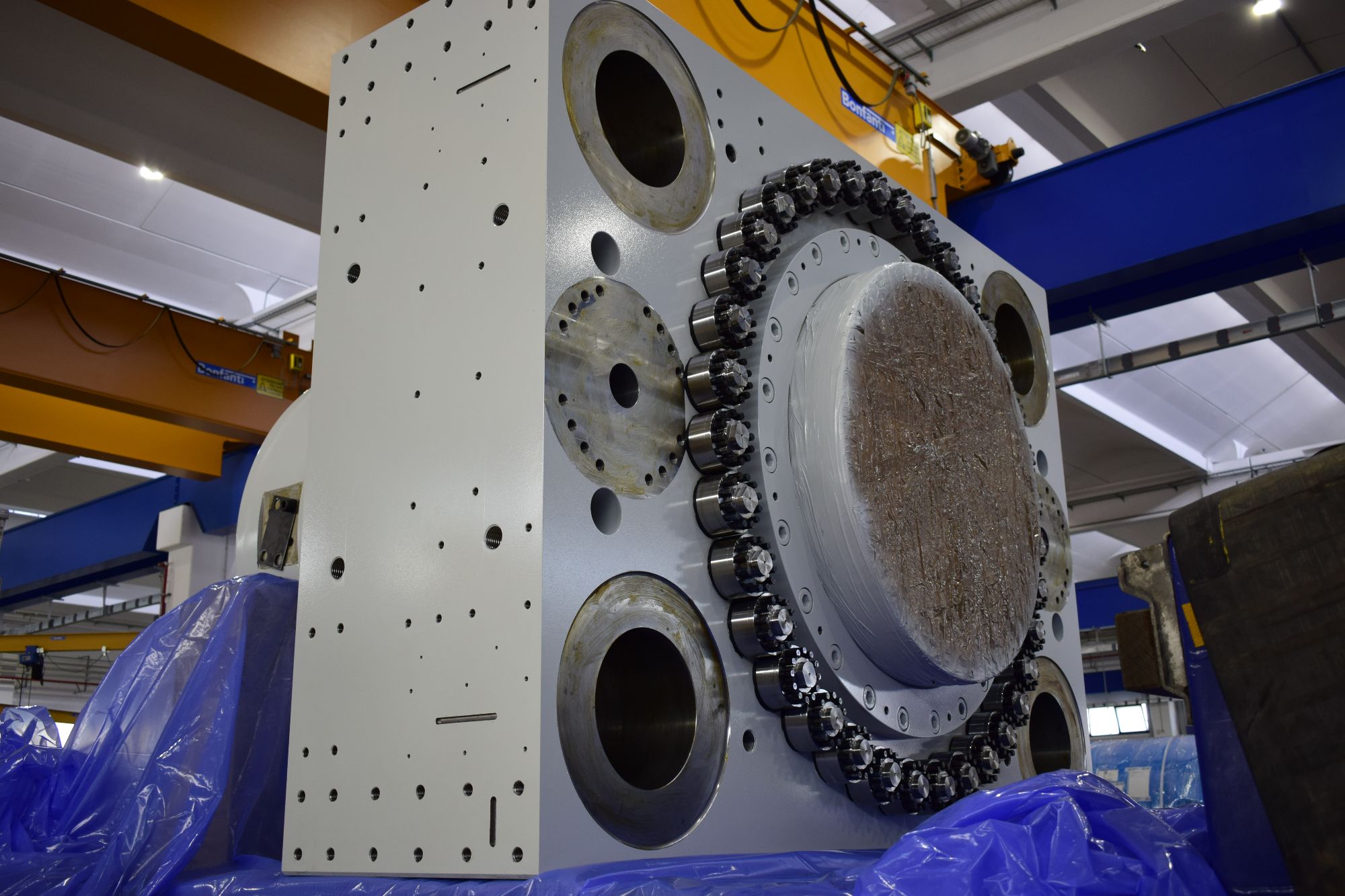

Main cylinders of hydraulic presses, often combined with prefill valves, lifting and positioning of heavy loads, test benches. See our cylinders for presses.
Technical data
| Type | Single-acting and plunger cylinders |
|---|---|
| Pressure chambers | One |
| Force | Developed in one direction only |
| Rod return | By an external force |
| Max bore | Up to 2,500 mm |
| Length | Any length |
| Testing | In special bespoke test cages |
Frequently asked questions
What is a single-acting cylinder?+
A single-acting cylinder has only one pressure chamber, so the force is developed in one direction only. The rod is returned by an external force.
What sizes can Silvio Fossa S.p.A. make?+
Single-acting cylinders up to 2,500 mm bore and in any length.
How are single-acting cylinders tested?+
They are tested in special bespoke cages. The four testing units of Silvio Fossa S.p.A. perform static and dynamic tests up to 1,500 bar, simulating the final application.
Need a cylinder built around your application?
Tell us your requirements and our technical office will prepare a quote.
